Laser Offset

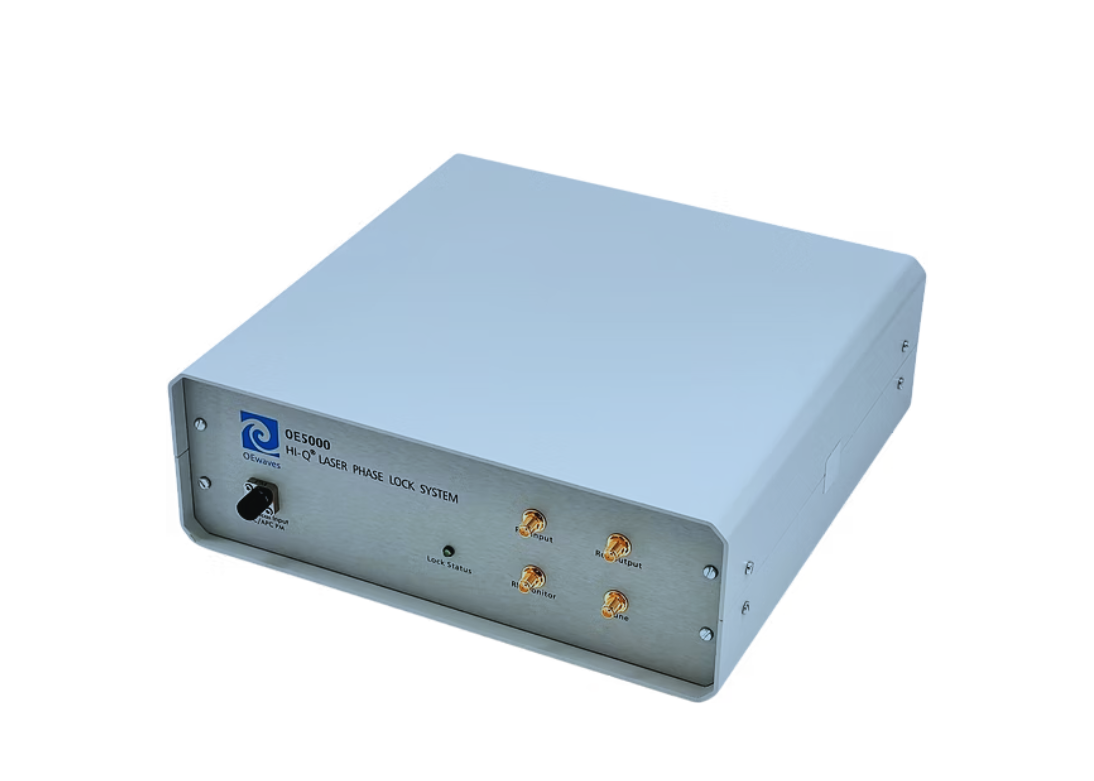

Hi-Q Phase Lock System

This system enables users to phase-lock two independent lasers with a frequency offset ranging from 250 MHz to 250 GHz, delivering unmatched stability and precision.

Features and Specifications

Features

Plus sign
  • Wide available frequency lock range
  • Large dynamic range
  • RF and optical monitor outputs
  • Internal or external RF reference

Applications

Plus sign
  • Quantum technology
  • Photonic local oscillators (LOs)
  • Metrology and sensing
  • Stabilized voltage-controlled oscillators (VCOs)

Specifications

Plus sign
  • Laser offset range: 1 GHz to 20 GHz
  • 2U half-width enclosure
  • Frequency reference input from 10 MHz to 800 MHz
  • Input laser wavelength bands from 420 nm to 1600 nm (765-805 nm, 1049-1079 nm, 1295-1325 nm, 1535-1565 nm)
