OE4162

HI-Q® NEAR IR LASER

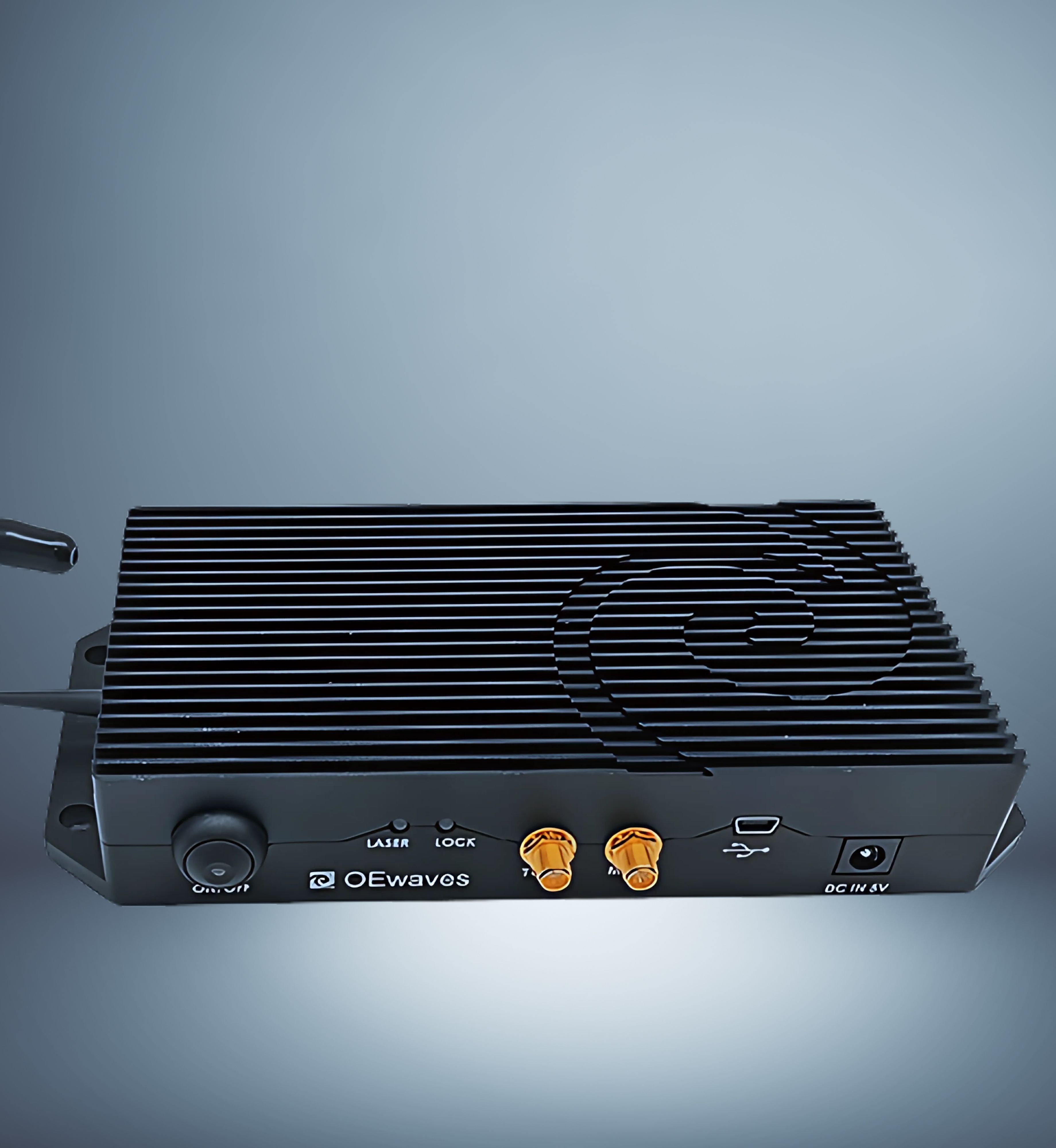

Delivering sub-10 Hz Lorentzian linewidth and ultra-low phase/frequency noise, the OEwaves HI-Q® laser offers high-performance stability in a sleek, compact form. Powered by a high-Q Whispering Gallery Mode (WGM) micro-resonator and proprietary driver/controller, it’s available in wavelengths from 1290 nm to 1350 nm.

Features and Specifications

Features

Plus sign
  • Ultra-narrow instantaneous laser linewidth
  • Ultra-low phase/frequency noise
  • Wavelength selection between 1230 nm and 1290 nm
  • Low vibration sensitivity
  • Low residual amplitude modulation
  • Wavelength stability
  • Integrated driver/controller
  • Compact package
  • USB or RS-232 control interface

Specifications

Plus sign
  • Wavelength range: 1290 nm – 1370 nm
  • Common wavelengths: 1230 nm, 1280 nm
  • Spectral linewidth: < 10 Hz
  • Output power: 1 mW - 10 mW
  • Thermal tuning range: 10 GHz (Mode hop free)
  • Monitor / control interface: USB

Options

Plus sign
  • Frequency modulation: DC - 1 MHz
  • Monitor / control interface: RS 232
  • Packaging: Lab Bench, Instrument, OEM
  • Multi-Output Laser: Single Wavelength or Phase-Locked Offset
  • High power amplification

Applications

Plus sign
  • Optical metrology and spectroscopy
  • Coherent communication
  • Acoustic sensing
  • Oil & gas exploration
  • Interferometric optical sensing
  • B-OTDR temperature and strain
  • LIDAR
  • Test and measurement
